Brand Name : Topview
Model Number : TD-4317
Certification : CE,FCC,ROSH,C-TICK
Place of Origin : GuangDong,CN
MOQ : 1PCS
Price : Negotiable
Payment Terms : T/T, Western Union, MoneyGram
Supply Ability : 4000PCS per month
Delivery Time : 10-15days after payment
Packaging Details : Packed in carton firstly,and then reinforced with wooden case for outer packing
Input Voltage : 110~240V/50~60Hz
Panel Brand : SAMSUNG/LG
Response Time : 6.5ms
After-sales Service Provided : Video technical support, Free Spare Parts, Field installation
Processor : I3/I5/I7
Ram : 4G/8G
Hard Disk : Solid state 120G
Product Name : K L Shape LCD Touch Screen Kiosk , Floor Standing Multi Touch Digital Signage
K L Shape LCD Touch Screen Kiosk , Floor Standing Multi Touch Digital Signage
User Manual Of Indoor Touch Kiosk.pdf

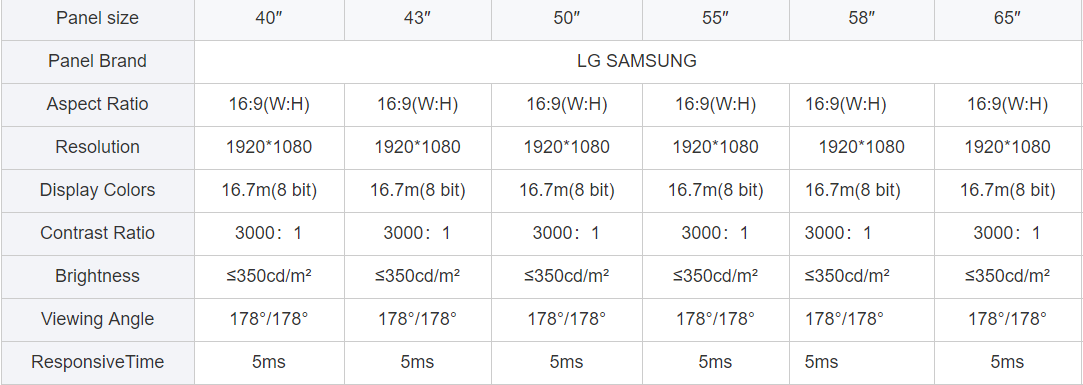

| LCD Panel Parameter: | |
| LCD Screen Size: | 32"/43"/50"/55"/65" optional |
| Panel Type: | TFT-LCD screen & LED backlight |
| Panel Brand: | LG |
| Aspect Ratio: | 16:9 |
| Resolution: | 1920x1080 |
| Brightness: | 450cd/m2 |
| Contrast Ratio: | 3000:1 |
| Response Time: | 6ms |
| Lifespan: | 50,000 hours |
| Technical Specification: | |
| Enclosure material: | Aluminum frame / spray cold roll steel sheets body / Tempered glass cover |
| Colored system: | PAL/NTSC/Auto-detecting |
| Menu Language: | Multiple language for option: English (Default) |
| Speakers: | 2x5W |
| Noise Reduction: | Yes |
| Voltage Frequency: | AC100-240V |
| Horizon Frequency: | 50/60Hz |
| Working temperature: | 0-50 ℃ |
| Working humidity: | 10%-90% no condensation |
| Storage temperature: | -20-80 ℃ |
| Storage humidity: | 85% no condensation |
| Operatin System: | |
| Android (Optional) | |
| Processer: | Quad-core |
| RAM: | 2G |
| ROM: | 8G |
| Interface: | USB/VGA/MIC/AUDIO/HDMI/RJ45/WIFI Optional |
| Windows (Optional) | |
| CPU: | Intel core i3 / i5 / i7 optional |
| Memory: | 4G /8G optional |
| Hard Disk: | 120G / 256G SSD, or 500G /1T HDD |
| Interface: | RJ45/WIFI/4G/HDMI/USB/SD |
| Touch Screen (Optional) | |
| Touch type: | 10 points |
| Touch sensor: | infrared / capacitive optional |
| Touch surface: | 4mm tempered glass |
| Response time: | <10ms |






Application

 1. Public Places: Subway, Airport, Bookshop, Exhibition hall, Gymnasium, Museum, Conference
 center, Talent market, Lottery center, etc.
 2. Entertainment Places: Movie theatre, Fitness center, Vacational village, KTV bar, Internet bar,
 Beauty salon, Golf course, etc.
 3. Financial Institution: Bank, Security/ Fund/ Insurance company, etc.
 4. Business Organizations: Supermarket, Shopping malls, Exclusive shop, chain store, 4S shop,
 Hotel, Restaurant, travel agency, Chemist's shop, etc.
 5. Public Service: Hospital, School, Telecom, Post office, etc.
 6. Real Estate&Property: Apartment, Villa, Office building, Commercial office buildings, Model
 houses, Sales offices, the entrance of elevator, etc
FAQ:
 Q:How long is the warranty time for your products?
 A: Our officially promised warranty time is one whole year after delivery at best.
 Q: When will you make the delivery?
 A: We can make the delivery within 3-15 working days or depend on the size and quantities of your order.
 Q:what brand of screen are you using?
 A:we are using Samsung,LG and AUO screen.
 Q: Do you have your own enclosure factory?
 A:Yes we do have our own enclosure factory,and we have the best structural Engineer,we hope to provide you with best screen and shape,so OEM is also welcome.
 Q:Do you give any discount ?
 A: We are Manufacturer, so we are able to give you the best price and best service at the same time.
 Q:What payment methods your company accept?
 A:We accept most of the payment methods,but mainly accept T/T, WesternUnion,Paypal and MoneyGram
|
                                             |

                        K L Shape LCD Touch Screen Kiosk , Floor Standing Multi Touch Digital Signage Images |
